Roofit Solar Velario®
Velario has several US installations. Each module is tempered glass over solar cells on a steel backsheet, double-lock seamed to its neighbors. Roofit Solar Energy makes it in Europe.
US track record: several US installations.
Where it stands in the US
Roofit Velario has several installations in the US.
We quote it from Roofit's installation manual and datasheets, and the manufacturer engineers the panel layout for each roof we design.
How it's built

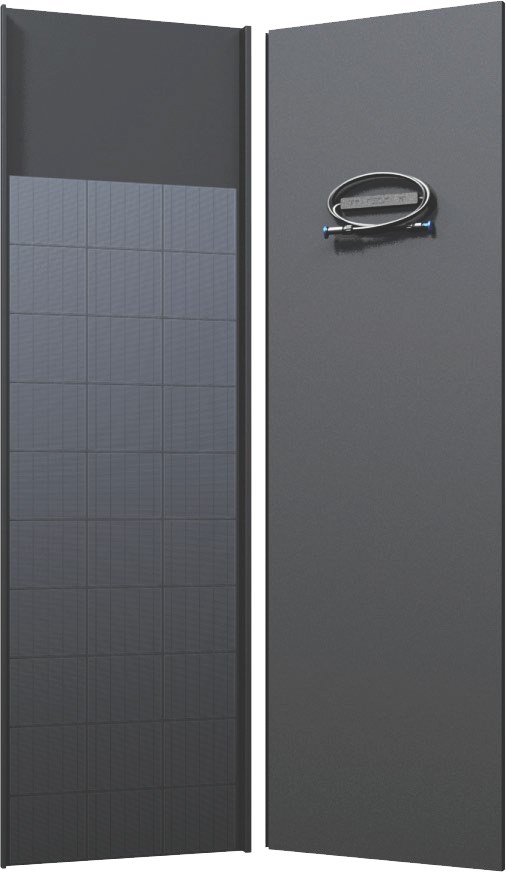

Each Velario module is 0.126 in (3.2 mm) tempered low-iron glass laminated over monocrystalline PERC cells, on a 0.0196 in (0.5 mm) galvanized steel backsheet with a GreenCoat Pural BT coating. The steel edges are formed into seams, so the module goes on like a standing-seam panel: double-lock seamed to its neighbors over battens, with at least 1.96 in of ventilation space beneath.
It comes in two lengths. Velario 115/3×8 covers 54.2 × 21.6 in and Velario 145/3×10 covers 66.8 × 21.6 in. Plain steel panels in a matching finish cover the rest of the roof. We specify the inverter and module-level electronics for each project.
Roofit Velario® specifications
As published by the manufacturer, converted to US units. Both of our system pages use the same rows, so you can compare them line by line.
| Specification | Roofit Velario®Roofit Solar Energy OÜ |
|---|---|
| Product | |
| Maker | Roofit Solar Energy OÜ, Tallinn, Estonia |
| Made in | Europe (manufacturer statement) |
| Models | Velario 115/3×8 · Velario 145/3×10 |
| Rated power per module (STC) | 115 W · 145 W |
| Roof coverage per module | 54.2 × 21.6 in, about 8.1 sq ft (115) · 66.8 × 21.6 in, about 10.0 sq ft (145) |
| Rated power per sq ft of roof covered | About 14.1 W (115) · about 14.5 W (145), calculated |
| Efficiency, as stated | 15.9% module efficiency (Velario 115) |
| Roof | |
| Minimum roof pitch | 10° (about 2.1:12) |
| Seam | Double-lock standing seam |
| Front glass | 0.126 in (3.2 mm) tempered low-iron glass |
| Steel | 0.0196 in (0.5 mm) galvanized steel backsheet, GreenCoat Pural BT coating |
| Cells | Monocrystalline PERC, 6.25 in (158.75 mm); 3×8 or 3×10 |
| Weight | 26 lb per module, 3.28 lb/sq ft installed (115) · 30.8 lb, 3.17 lb/sq ft (145) |
| Acoustic layer | Not stated |
| Durability | |
| Load rating, as stated | Tested 208 psf positive, 146 psf negative |
| Hail rating, as stated | HW4: hailstones up to 1.5 in (40 mm) |
| Operating temperature | −40 °F to 185 °F |
| Fire classification (EU, EN 13501-5) | BROOF (t1), BROOF (t2) |
| Electrical | |
| Electrical | 1000 V DC max system voltage; Class II; 16 A max series fuse |
| Module electronics and inverter | Specified by Solar Seam for each project |
| Certification | |
| Certifications listed by the manufacturer | IEC 61215, IEC 61730 (tested by Kiwa) |
| UL 61730 listing (US) | Not claimed; being verified |
| Warranty | |
| Product warranty | 10 years |
| Power warranty | 25 years; at least 80% of rated output |
| Steel and coating warranty | Not stated on the datasheet |
| Electronics warranty | Set by the equipment chosen for your project |
- Figures are as published in each manufacturer's current datasheet, factsheet or guarantee terms, converted to US units. "Not stated" means the manufacturer doesn't publish that figure.
- Manufacturers state load and hail ratings on different test bases. They are not design loads; a structural engineer sets your roof's design snow and wind loads.
- Efficiency is stated on different areas. The per-square-foot row divides rated power by roof coverage, which puts both systems on the same basis.
- UL 61730: we don't claim a North American listing for either system until we have verified it.
Warranty, in plain terms
Who stands behind what, and for how long. We put the issued terms in writing with your proposal.
- Module10-year product warranty.
- Power output25 years, with at least 80% of rated output.
- Steel and coatingRoofit's datasheet doesn't state a separate term. We put the terms Roofit issues for your roof in writing with your proposal.
- Inverter and electronicsWarranted by their manufacturers. Terms depend on the equipment we specify for your roof.
- WorkmanshipSolar Seam's, in writing in your contract.
Where it fits
Six things decide which system goes on a roof. Here is where this one lands on each.
- Roof pitchNeeds 10° (about 2.1:12) or steeper. Flatter sections, such as some porches and sheds, get standing-seam metal rated for the slope.
- Roof shape and module sizesTwo module lengths, about 54 in and 67 in, give more ways to fill short runs between dormers, hips and valleys.
- Warranty priorities10-year product and 25-year power warranties. Compare the terms side by side.
- ElectronicsWe specify the inverter and module-level electronics for each roof and utility.
- Lead timeMade in Europe and shipped by sea. We confirm lead time when we place the order.
- BudgetPriced per roof. The instant estimate prices it next to SolRoof FIT VOLT on your address, with the same line items.
Worth knowing
Warranty
10 years on the module and 25 on power output. Roofit's datasheet doesn't state a separate steel or coating term; we give you the issued terms in writing.
Pitch
At 10° minimum, the flattest parts of some roofs (porches, sheds, low additions) get standing-seam metal rated for the slope instead of active modules.
Loads
Roofit's US datasheet lists tested loads of 208 psf down and 146 psf up. Tested ratings are not design loads; a structural engineer checks your roof against local snow and wind.
In the US
Several US installations. Roofit's US datasheet lists UL standards; we don't claim a UL listing until we've verified it for the modules on your roof.

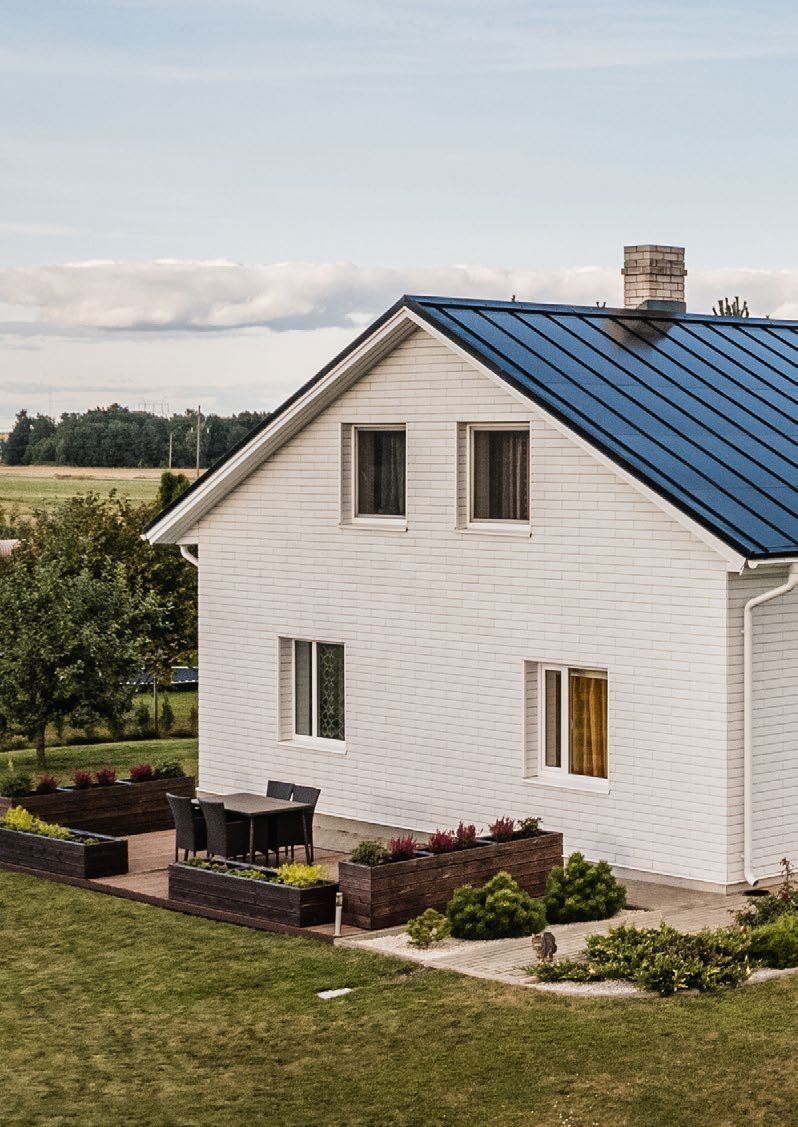

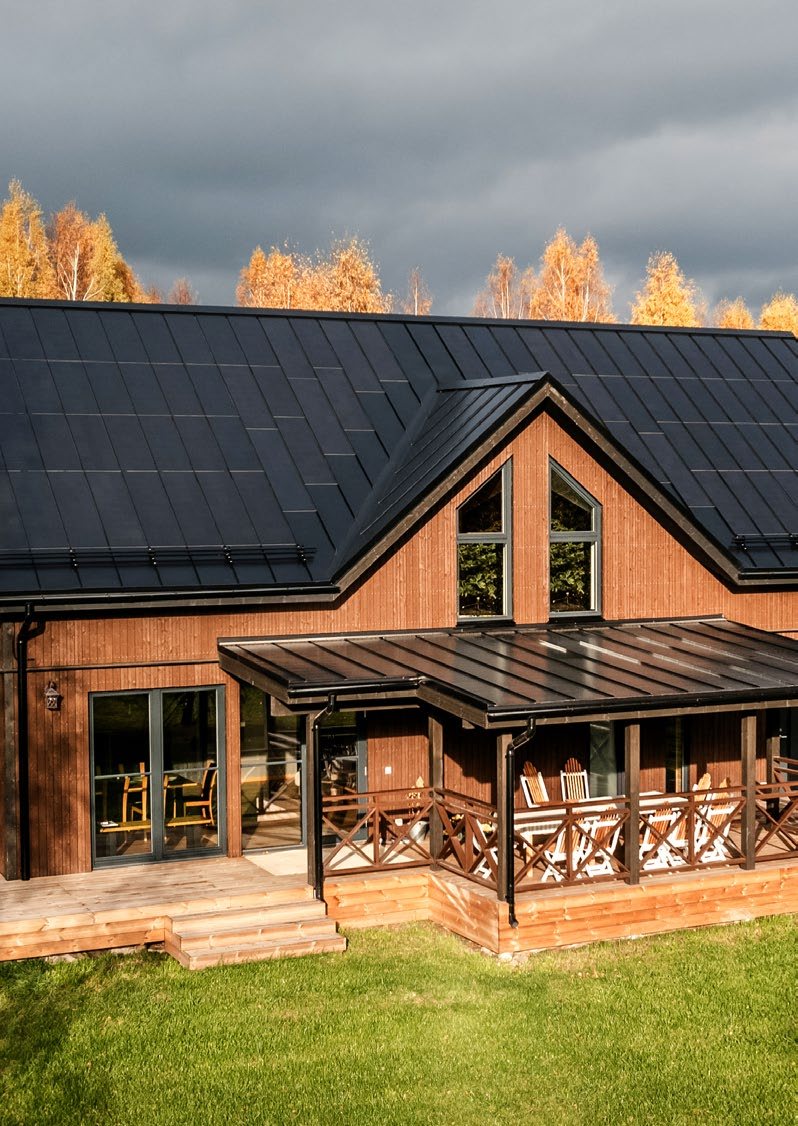

Representative installations
Manufacturer photographs, labeled as such. None of them is a Solar Seam roof.
Datasheets
The manufacturer's documents, as published. They list certifications as the manufacturer states them; we don't claim a UL listing until we've verified it.
Price Roofit Velario® on your roof
The instant estimate measures your roof and prices both systems where both fit, so you see this one next to SolRoof FIT VOLT.
Attribution. Roofit and Velario® are products of Roofit Solar Energy OÜ (Estonia). SolRoof and FIT VOLT are products of BP2 Sp. z o.o. (EU). Solar Seam is an independent installer of both.
