SolRoof FIT VOLT
The FIT VOLT case rests on its specifications and its warranty: tempered glass on 0.5 mm XCarb® steel, a SolarEdge optimizer for every two panels, and a steel warranty of up to 60 years with the XTREME coating. BP2 makes it in the EU.
US status: proven across European installations. Not yet installed in the US; Solar Seam is preparing its first US projects.
Where it stands in the US
SolRoof FIT VOLT has not been installed anywhere in the US yet. It is proven across European installations, and Solar Seam is preparing its first US projects.
So its case here rests on its specifications and its warranty, which is what this page sets out. Until our first SolRoof roof is built, every SolRoof photo we show is a European installation, labeled as one.
How it's built

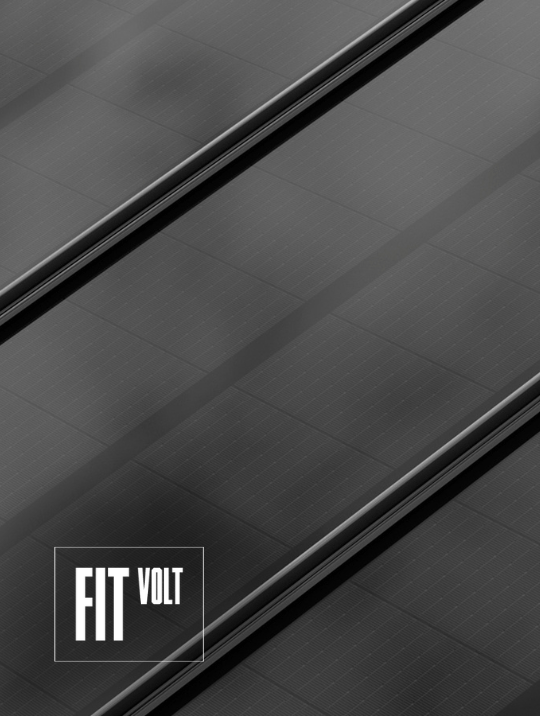

FIT VOLT is a glass-on-steel panel: tempered glass over 36 half-cut monocrystalline PERC cells, on a 0.5 mm XCarb® steel panel from ArcelorMittal. Panels snap together at 0.87 in (22 mm) standing seams over a ventilated batten deck, and a SOUNDCONTROL 200 coating on the underside damps rain noise.
Each active panel covers about 20.7 × 79.1 in. Plain FIT steel panels in the same profile, in two lengths, finish the roof. Each pair of active panels feeds one SolarEdge optimizer, mounted in a steel track at the roof edge where it can be reached. Cabling runs in steel channels under the roof covering, and a SolarEdge inverter completes the system.
SolRoof FIT VOLT specifications
As published by the manufacturer, converted to US units. Both of our system pages use the same rows, so you can compare them line by line.
| Specification | SolRoof FIT VOLTBP2 Sp. z o.o. |
|---|---|
| Product | |
| Maker | BP2 Sp. z o.o., Kraków, Poland |
| Made in | EU (manufacturer statement) |
| Models | FIT VOLT, with ULTIMAT or XTREME steel coating |
| Rated power per module (STC) | 165 W |
| Roof coverage per module | 20.7 × 79.1 in effective (80.3 in panel), about 11.4 sq ft |
| Rated power per sq ft of roof covered | About 14.5 W, calculated |
| Efficiency, as stated | 21.1%; 208 W/m² on the active part of the panel |
| Roof | |
| Minimum roof pitch | More than 9° (about 1.9:12) |
| Seam | Snap-on standing seam, 0.87 in (22 mm) high |
| Front glass | Tempered glass |
| Steel | 0.5 mm XCarb® steel (ArcelorMittal), made from recycled steel using renewable electricity, per BP2 |
| Cells | Monocrystalline PERC, 210 mm half-cut; 36 cells (2×18) |
| Weight | 33 lb (15 kg) per panel; installed weight per sq ft not stated |
| Acoustic layer | SOUNDCONTROL 200 coating, standard |
| Durability | |
| Load rating, as stated | Static load 1,600 Pa (about 33 psf), positive and negative |
| Hail rating, as stated | 25 mm (about 1 in) hailstone at 23 m/s (about 51 mph) |
| Operating temperature | −40 °F to 185 °F |
| Fire classification (EU, EN 13501-5) | BROOF (t1), BROOF (t4) |
| Electrical | |
| Electrical | 1000 V max system voltage |
| Module electronics and inverter | SolarEdge optimizer for each pair of panels; SolarEdge inverter included |
| Certification | |
| Certifications listed by the manufacturer | IEC 61215, IEC 61730, ISO 9001; tested at the Fraunhofer Institute; VDE-certified production line |
| UL 61730 listing (US) | Not claimed; being verified |
| Warranty | |
| Product warranty | 12 years on FIT VOLT active panels |
| Power warranty | 25 years; at least 97.5% in year 1 and 80% at year 25 |
| Steel and coating warranty | 30 years on the steel; up to 60 years with XTREME coating (40 years within 3 km, about 2 mi, of the coast) |
| Electronics warranty | SolarEdge: 25 years on optimizers, 12 years on the inverter |
- Figures are as published in each manufacturer's current datasheet, factsheet or guarantee terms, converted to US units. "Not stated" means the manufacturer doesn't publish that figure.
- Manufacturers state load and hail ratings on different test bases. They are not design loads; a structural engineer sets your roof's design snow and wind loads.
- Efficiency is stated on different areas. The per-square-foot row divides rated power by roof coverage, which puts both systems on the same basis.
- UL 61730: we don't claim a North American listing for either system until we have verified it.
Warranty, in plain terms
Who stands behind what, and for how long. We put the issued terms in writing with your proposal.
- Module12-year product guarantee on FIT VOLT active panels.
- Power output25 years: at least 97.5% of minimum peak power in year 1 and 80% at year 25.
- Steel and coating30 years on the steel roof. Up to 60 years with the XTREME coating, or 40 years within 3 km (about 2 miles) of the coast. The guarantee must be registered with the manufacturer.
- Inverter and electronicsSolarEdge: 25 years on the optimizers and 12 years on the inverter, on SolarEdge's terms.
- WorkmanshipSolar Seam's, in writing in your contract.
Where it fits
Six things decide which system goes on a roof. Here is where this one lands on each.
- Roof pitchNeeds more than 9° (about 1.9:12). Flatter sections, such as some porches and sheds, get standing-seam metal rated for the slope.
- Roof shape and module sizesOne active panel size, about 21 × 79 in, with plain FIT panels in two lengths to finish the roof. Long, simple planes suit it well.
- Warranty priorities12-year panel and 25-year power warranties, plus up to 60 years on the steel with the XTREME coating (40 near the coast). Compare the terms side by side.
- ElectronicsA SolarEdge optimizer for every two panels and a SolarEdge inverter, supplied as part of the system.
- Lead timeMade in the EU and shipped by sea. We confirm lead time when we place the order.
- BudgetPriced per roof. The instant estimate prices it next to Roofit Velario® on your address, with the same line items.
Worth knowing
Warranty
12 years on the panel and 25 on power output. The up-to-60-year term covers the XTREME-coated steel, not the solar panel, and it is 40 years within about 2 miles of the coast.
Pitch
At more than 9° minimum, the flattest parts of some roofs (porches, sheds, low additions) get standing-seam metal rated for the slope instead of active panels.
Loads
BP2's factsheet lists a static load rating of 1,600 Pa (about 33 psf), both directions. In heavy-snow towns, the structural check decides where it can go.
In the US
Not yet installed in the US. Proven across European installations; Solar Seam is preparing its first US projects. We don't claim a UL listing until we've verified one.

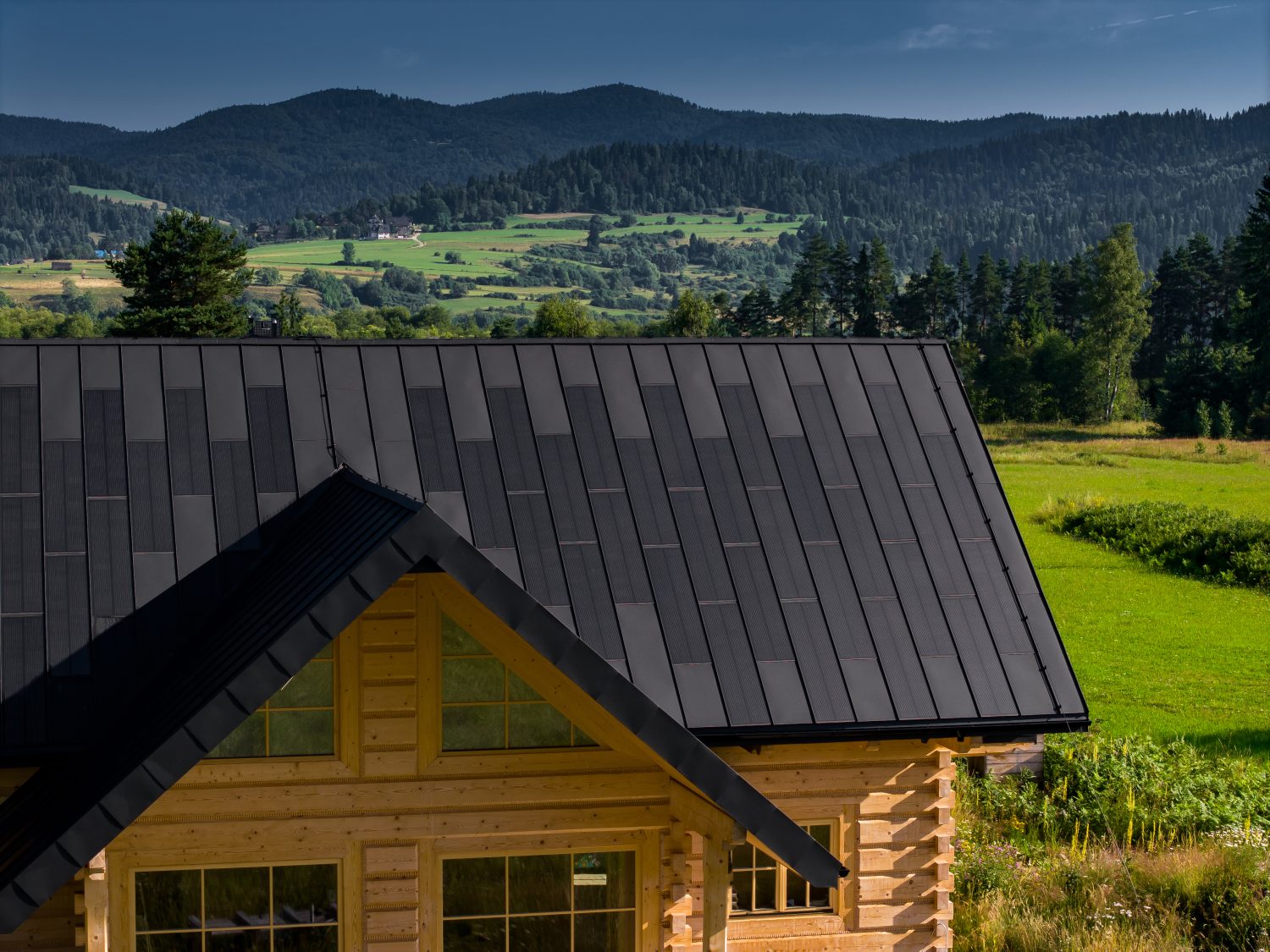

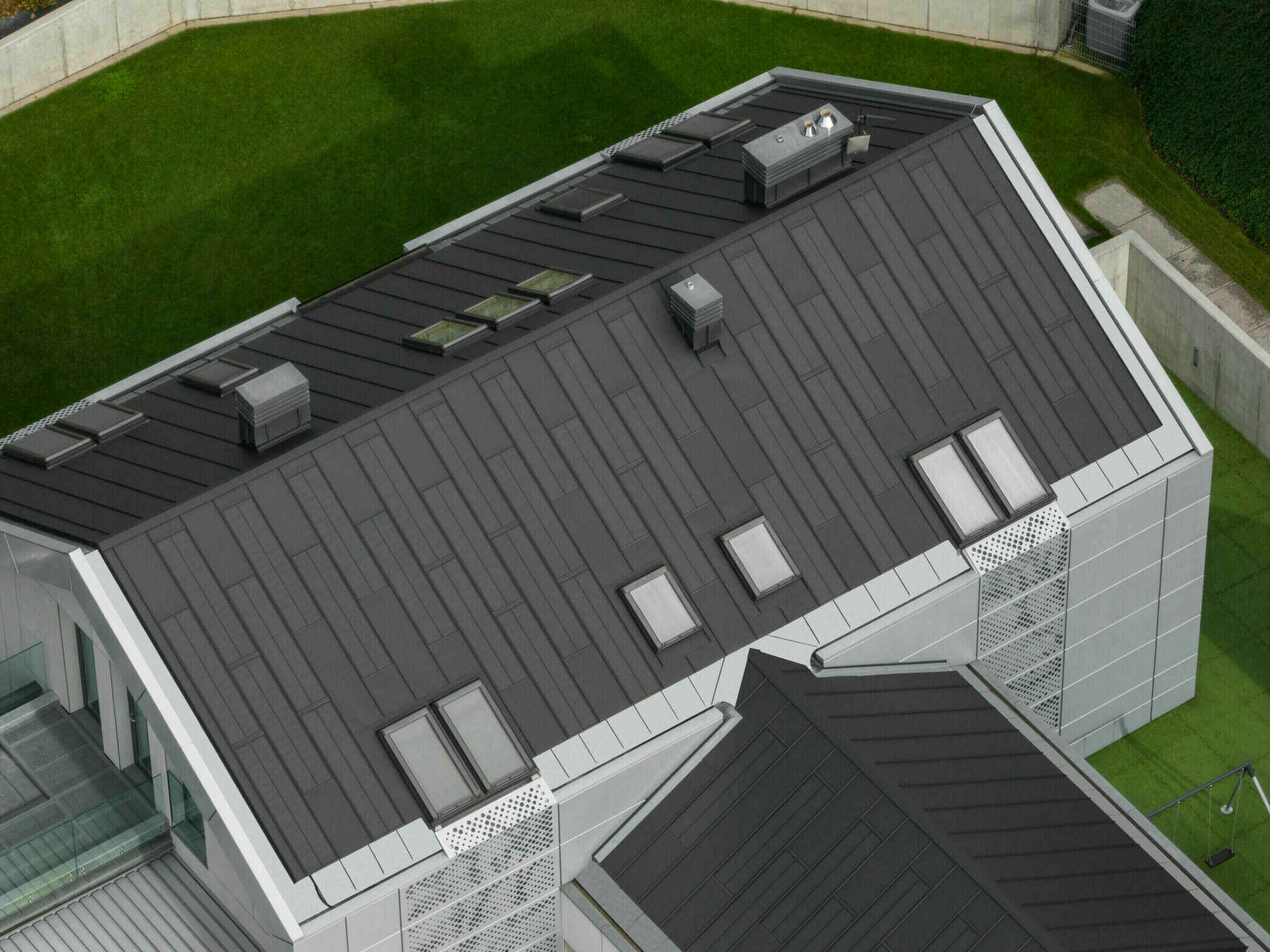

Representative installations
Manufacturer photographs, labeled as such. None of them is a Solar Seam roof.
Datasheets
The manufacturer's documents, as published. They list certifications as the manufacturer states them; we don't claim a UL listing until we've verified it.
Price SolRoof FIT VOLT on your roof
The instant estimate measures your roof and prices both systems where both fit, so you see this one next to Roofit Velario®.
Attribution. Roofit and Velario® are products of Roofit Solar Energy OÜ (Estonia). SolRoof and FIT VOLT are products of BP2 Sp. z o.o. (EU). Solar Seam is an independent installer of both.
